CELLULAR SIGNAL IMPROVEMENT SERVICES

Increased dependency on mobile devices for communication, work and entertainment makes carrier cellular signal increasingly more important. Cellular signal improvement is possible for any space having limited or even no signal for one or more carriers.  Whether you need cellular signal improvement in a modest multi-office space or a large building or multiple buildings in a large complex, there are systems of various capacity that can deliver signal for all carriers in your area. Our enterprise grade solutions for cellular signal enhancement or amplification can be small utilizing small cells for signal source or be large and expandable via Fiber-based BTS signal source, applicable to all below types of commercial venues:

  • Large mixed-use projects with residential and commercial space
  • Hospitality Businesses
  • Healthcare and Education centers
  • Retail centers of any size
  • Medical Offices
  • Business & Education Campuses

Cellular Signal Improvement Systems incorporating coaxial, fiber, and category cabling can offer you remedies for both indoor coverage and outdoor.  For large commercial venues, Hotels, Shopping Centers, Business Campuses, and Medical Offices, we can undertake site survey, system design, infrastructure installation, carrier negotiation for signal rebroadcast as well as data collection post deployment.

Additionally, post deployment we can offer remote access, monitoring and regular maintenance of all installed systems.  In the past few years we have installed systems small enough to cover only common area spaces totaling less than 10,000 square feet, as well as enterprise grade systems large enough to provide cell signal for AT&T, Verizon and T-Mobile on multiple levels of an entire complex totaling over 900,000 Square feet.

Costs for these cellular signal enhancement systems (commercial DAS) are changing rapidly, as the increased demand is encouraging many manufacturers in the US and overseas to develop newer systems meeting a wide range of scale. Our Cellular enhancement systems (Enterprise Grade Cell Boost) feature head-end components manufactured by Commscope, ADRF, Comba Telecom, and Nextivity Ce-fi.

Below are a few examples of commercial DAS systems we have recently deployed or are deploying

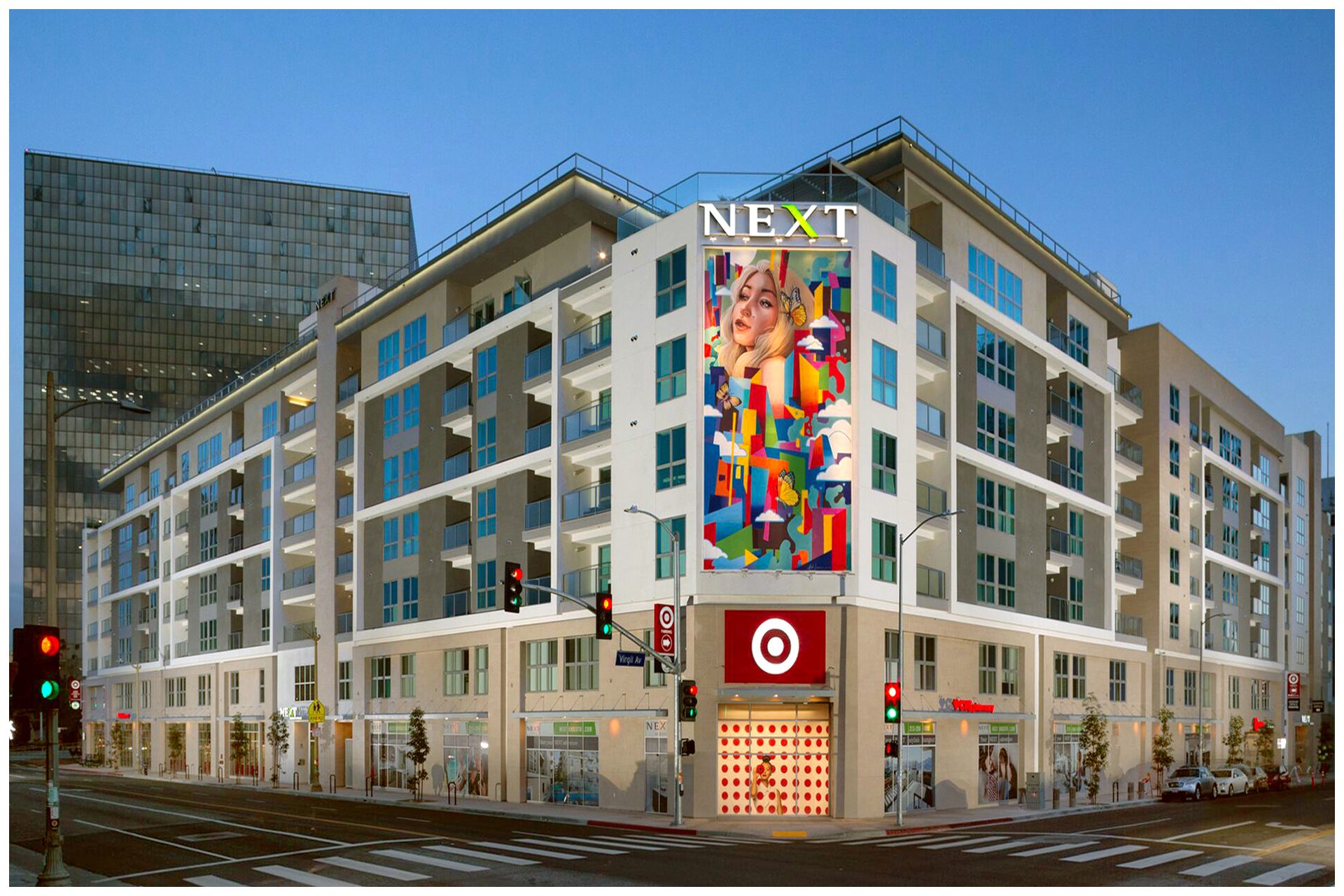

With over 900,000 Square Feet in residential & retails space and common areas, the property above required a large enterprise commercial DAS solution to improve celluar signal reception for three major carriers. Project featured fiber-based signal source from AT&T, T-Mobile and Verizon feeding their signal into our distribution infrastructure. All ten levels of the property were equipped with nearly 200 indoor antennas to provide combined cellular signal coverage. This system provided good cellular signal for all three carriers to over 95 percent of the property. Additionally, we provided Public Safety Provisions, commercial grade WiFi and centrally controlled Audio visual systems consiting of 9 zones of audio, a video wall, and more than 20 large screen TVs in lounges, lobbies, couryards, p
With over 900,000 Square Feet in residential & retails space and common areas, the property above required a large enterprise commercial DAS solution to improve celluar signal reception for three major carriers. Project featured fiber-based signal source from AT&T, T-Mobile and Verizon feeding their signal into our distribution infrastructure. All ten levels of the property were equipped with nearly 200 indoor antennas to provide combined cellular signal coverage. This system provided good cellular signal for all three carriers to over 95 percent of the property. Additionally, we provided Public Safety Provisions, commercial grade WiFi and centrally controlled Audio visual systems consiting of 9 zones of audio, a video wall, and more than 20 large screen TVs in lounges, lobbies, couryards, p

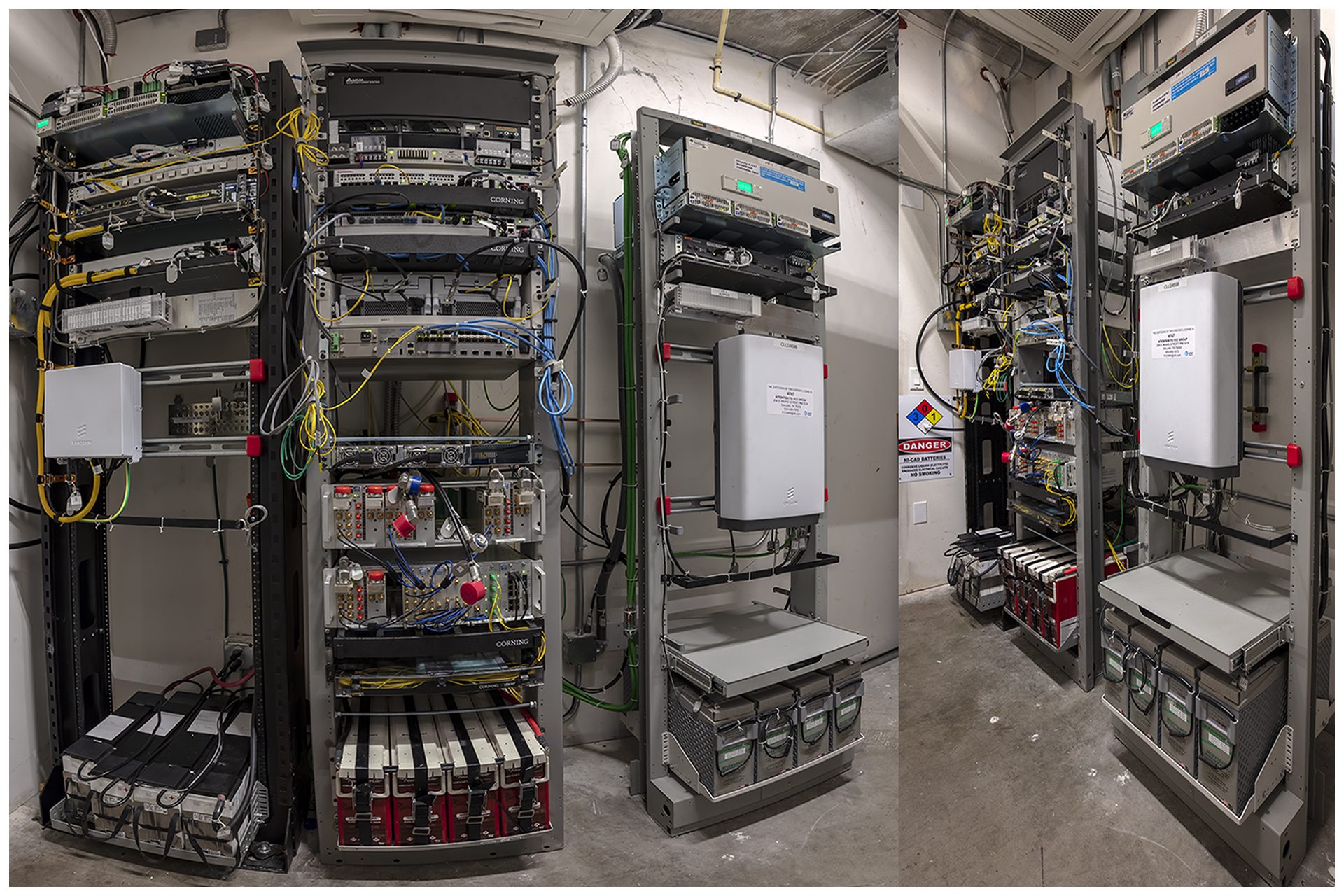

Above head-end in a dedicated room features the backbone equipment for our cellular signal enhancement for this venue and over 1000 residents and employees. Racks also contain all carrier signal source equipment from AT&T, T-Mobile, and Verizon so that the venue no longer relies on ambient off air carrier signal.
Above head-end in a dedicated room features the backbone equipment for our cellular signal enhancement for this venue and over 1000 residents and employees. Racks also contain all carrier signal source equipment from AT&T, T-Mobile, and Verizon so that the venue no longer relies on ambient off air carrier signal.

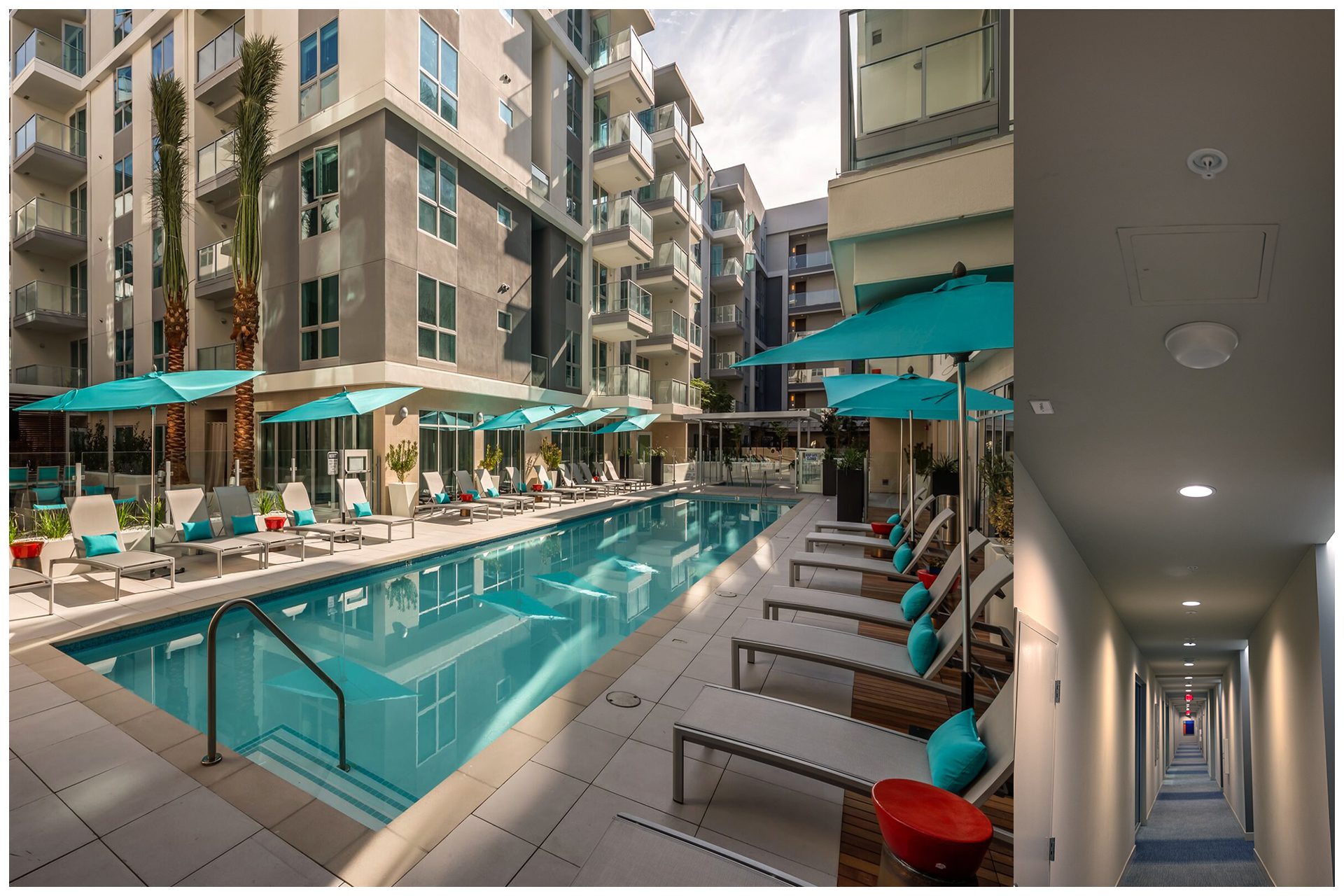

Expansive outdoor Courtyards & Pool Areas also featured cellular signal as well as WiFi. All 400 Residential units received cellular signal from antennas installed in hallways (see right side photo) so as to provide easy access for service. Fiber-based signal source from carriers ensures unlimited capacity for the 1000 plus residents, visitors and employees at the venue.
Expansive outdoor Courtyards & Pool Areas also featured cellular signal as well as WiFi. All 400 Residential units received cellular signal from antennas installed in hallways (see right side photo) so as to provide easy access for service. Fiber-based signal source from carriers ensures unlimited capacity for the 1000 plus residents, visitors and employees at the venue.
Previous
Next

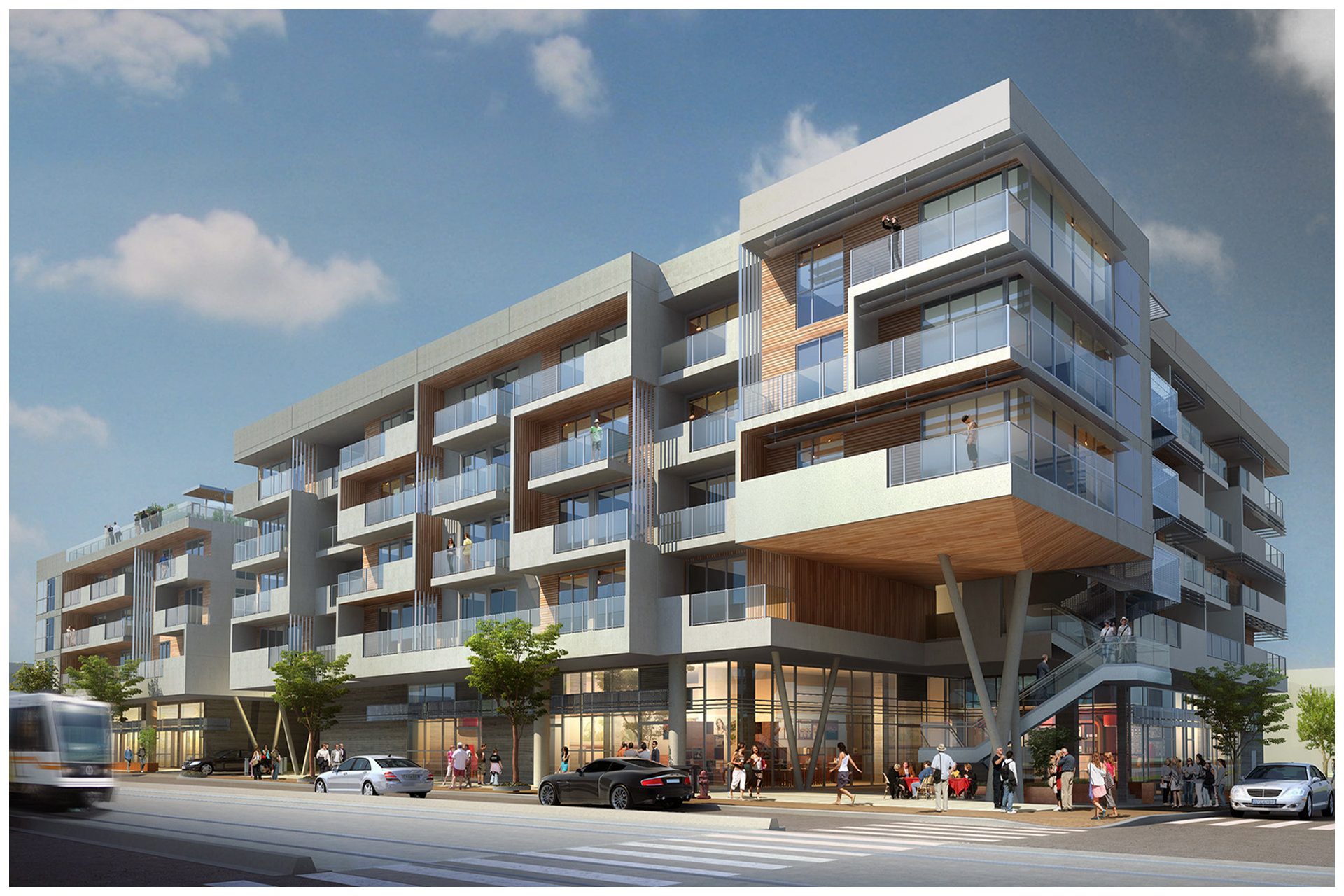

Commscope ION-E is a cost-effective scalable enterprise solution to deliver cellular signal from multiple carriers for large residences and commercial venues ranging from 5000 to 500,000 SF. Expansion will not require change to the original equipment. System is already carrier approved. As such, this system is planned for above project with 291 residential units and some retail space in Santa Monica, California.
Commscope ION-E is a cost-effective scalable enterprise solution to deliver cellular signal from multiple carriers for large residences and commercial venues ranging from 5000 to 500,000 SF. Expansion will not require change to the original equipment. System is already carrier approved. As such, this system is planned for above project with 291 residential units and some retail space in Santa Monica, California.

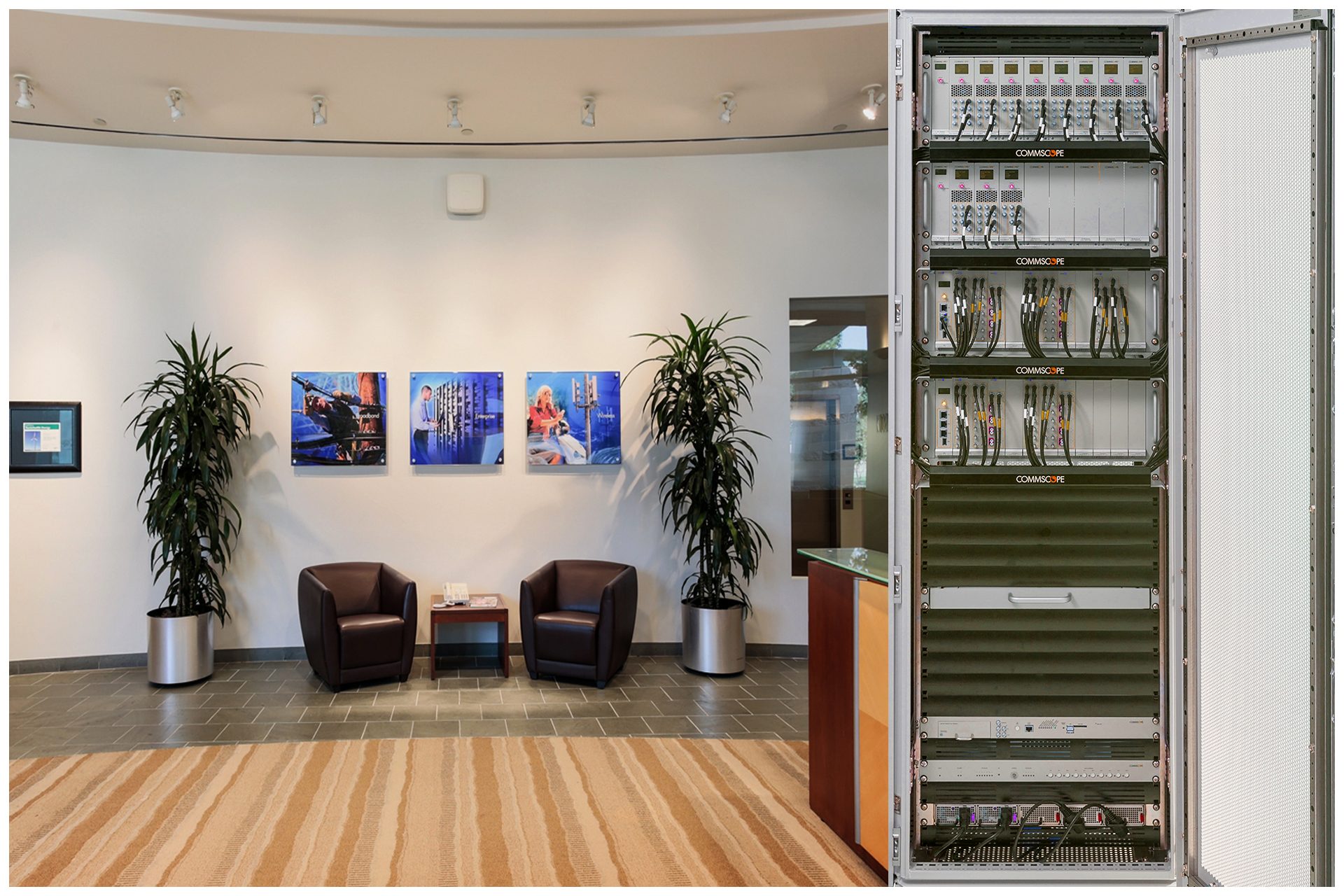

ION-E Cell stations cover a large indoor area and can be mounted on-wall or on-ceiling as shown in above photo. Signal from all three major carriers celluar is made accessible to residents and visitors on all levels. Rack on the left shows main system gear at the head-end location.
ION-E Cell stations cover a large indoor area and can be mounted on-wall or on-ceiling as shown in above photo. Signal from all three major carriers celluar is made accessible to residents and visitors on all levels. Rack on the left shows main system gear at the head-end location.
